VitePress

VitePress 是一个基于 Vite 的静态网站生成器,用于构建文档网站。它具有快速的热重载和强大的插件系统,可以轻松地创建和发布高质量的文档网站。

安装

安装包

bash

npm add -D vitepress

安装向导

VitePress 附带一个命令行设置向导,可以帮助你构建一个基本项目。安装后,通过运行以下命令启动向导:

bash

npx vitepress init

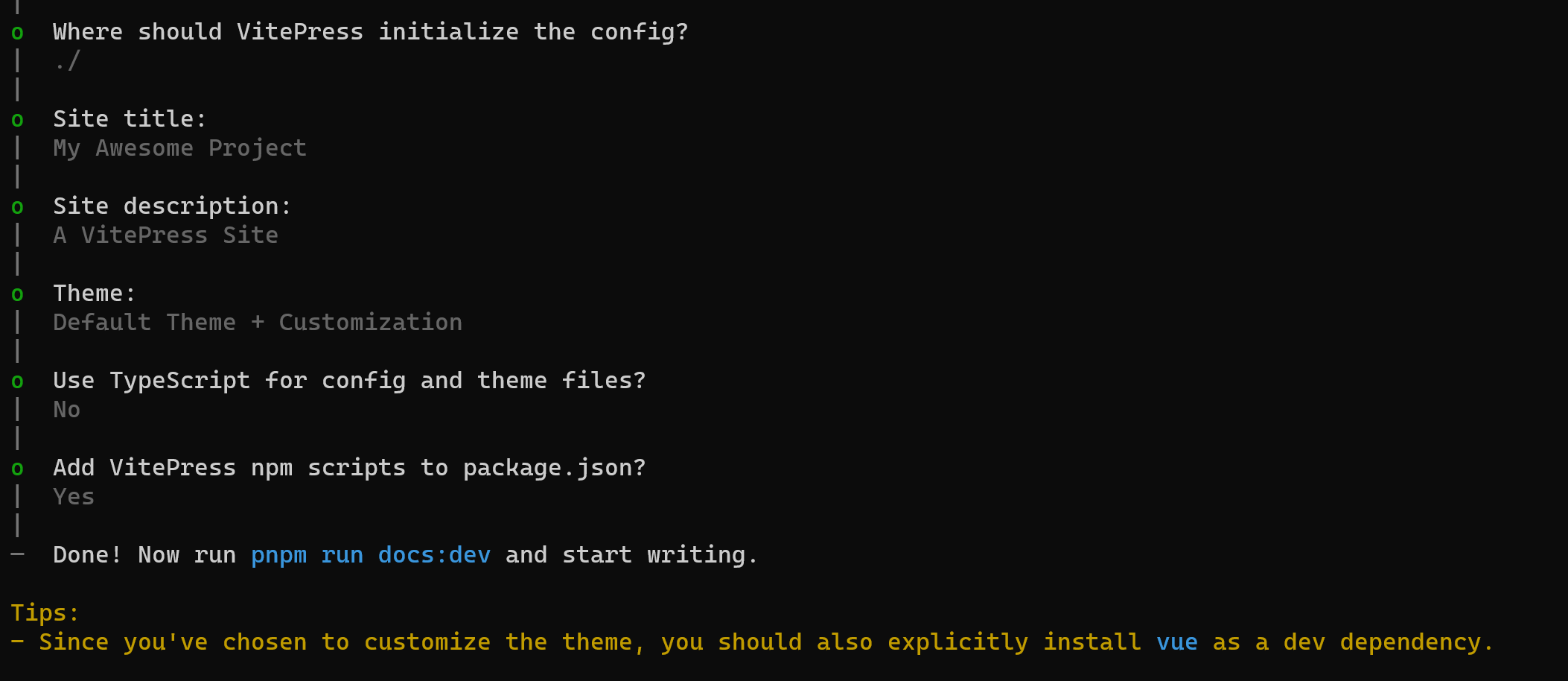

这是我的配置,简单介绍一下

  • 第一个是在当前根目录下创建 vitepress 项目

  • 站点标题和描述。后续可以在配置中改

  • 主题,建议选择第二个,个人觉得比较好看

  • 是否使用 ts,我们个人学习就没必要 ts 了,主要还是我懒

  • 是否添加脚本到 package.json,这个还是需要的,启动命令,打包命令这些都得用

将需要回答几个简单的问题:



文件结构

如果正在构建一个独立的 VitePress 站点,可以在当前目录 (./) 中搭建站点。

但是,如果在现有项目中与其他源代码一起安装 VitePress,建议将站点搭建在嵌套目录 (例如 ./docs) 中,以便它与项目的其余部分分开。

假设选择在 ./docs 中搭建 VitePress 项目,生成的文件结构应该是这样的:

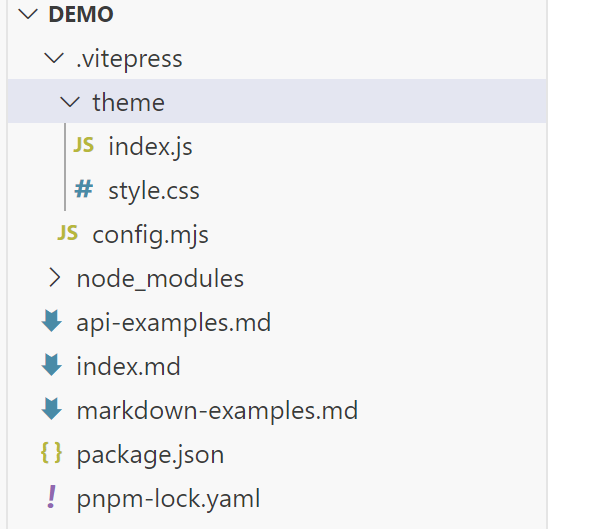

初始化成功后,使用 vscode 或 webstorm 打开文件夹,会看到这样一个目录。接下来简单介绍一下每个文件的含义

  • .vitepress,最核心的目录,

  • theme 目录。自定义主题配置,css 样式等

  • config.mjs。最核心的文件,各种配置导航栏、侧边栏、标题什么的都是在这里(重点)

  • node_modules。安装的依赖

  • api-examples.mdmarkdown-examples.md。官方给的两个示例

  • index.md主页相关重点

  • package.json 和 pnpm-lock.yml。包管理工具需要用的

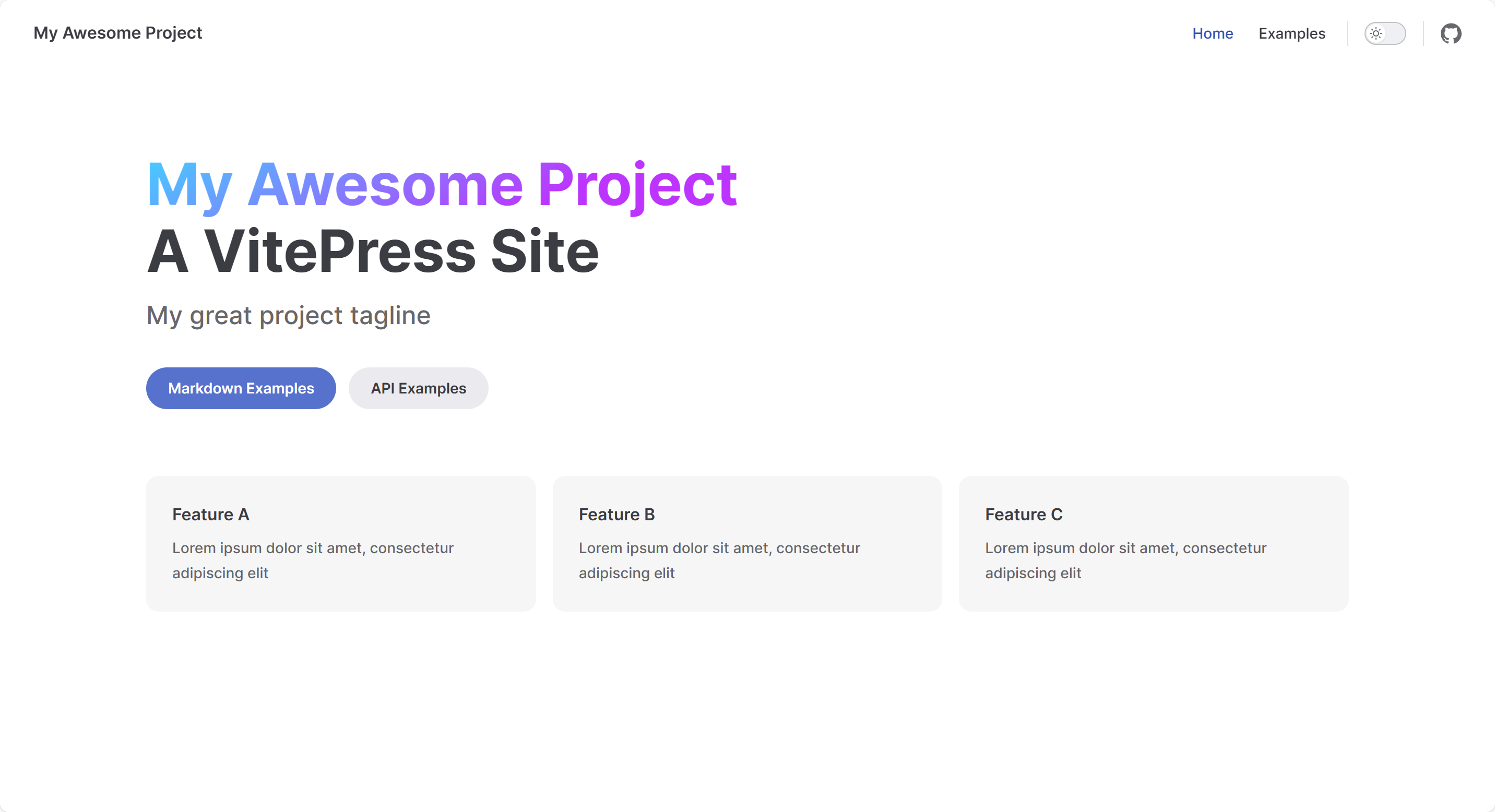

启动

bash

npm run docs:dev


自定义配置

美化主页

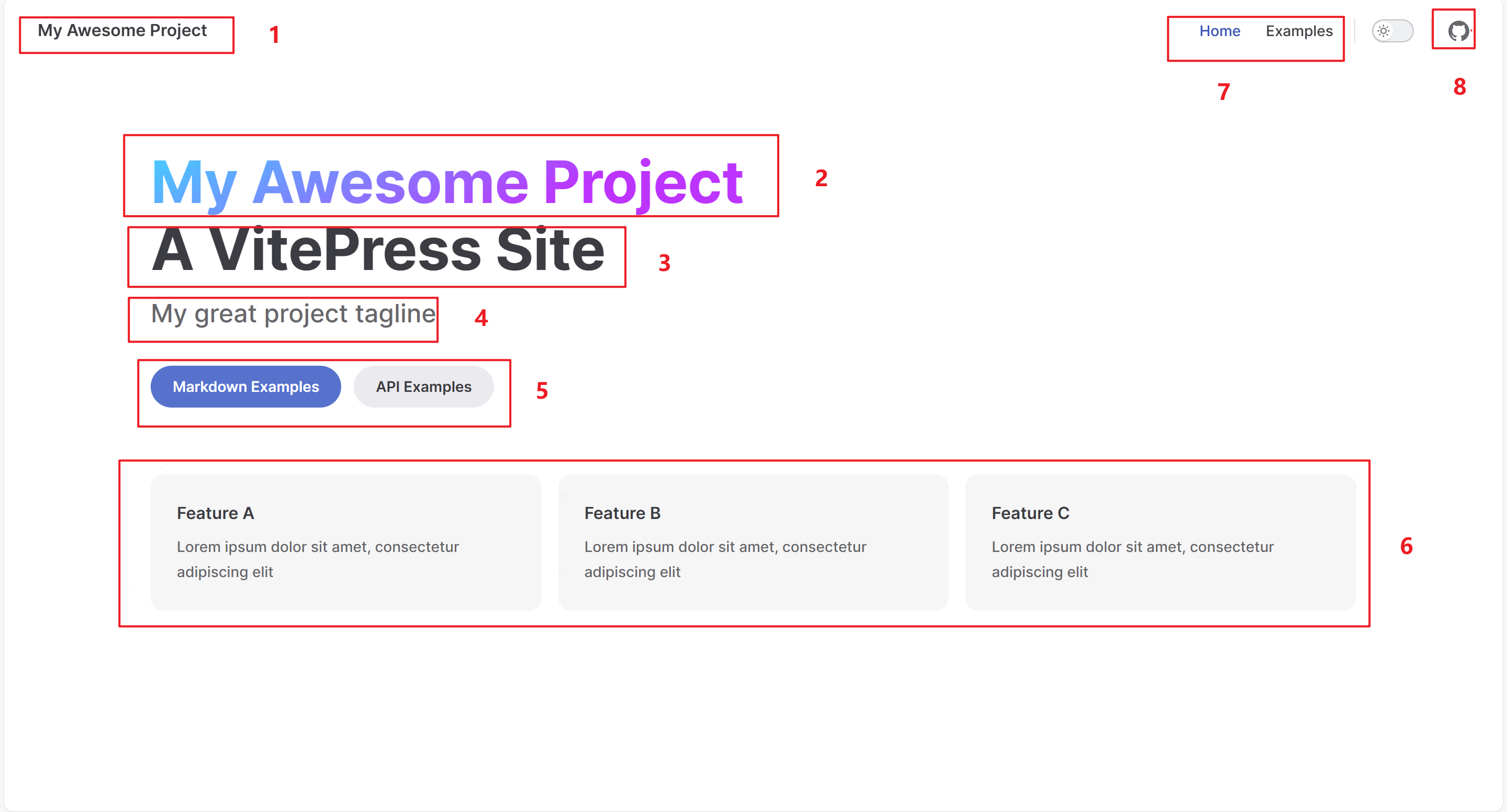

对于主页,我们自定义的内容有哪些?如下图,8 个地方可以自定义。接下来就一一叙述这 8 个地方怎么自定义的。


页脚


各个部位配置

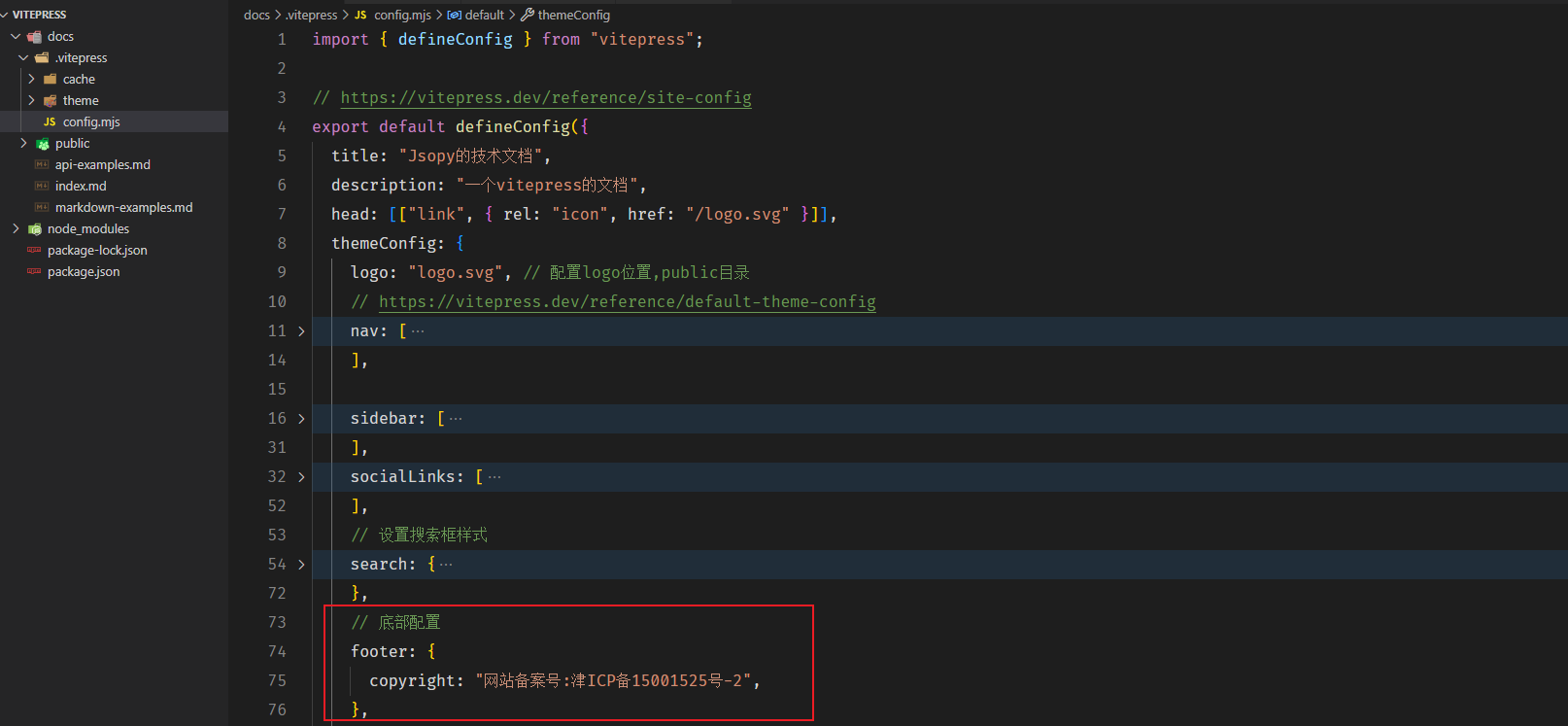

  • (9) 页脚

这个是直接配置 footer,在config.mjs 中里面的 defineConfig ->themeConfig 下面配置就可以了


  • 2-6 是在 index.md 文件中自定义的。简单介绍一下对应关系
序号对应
2name
3text
4tagline
5actions
6features

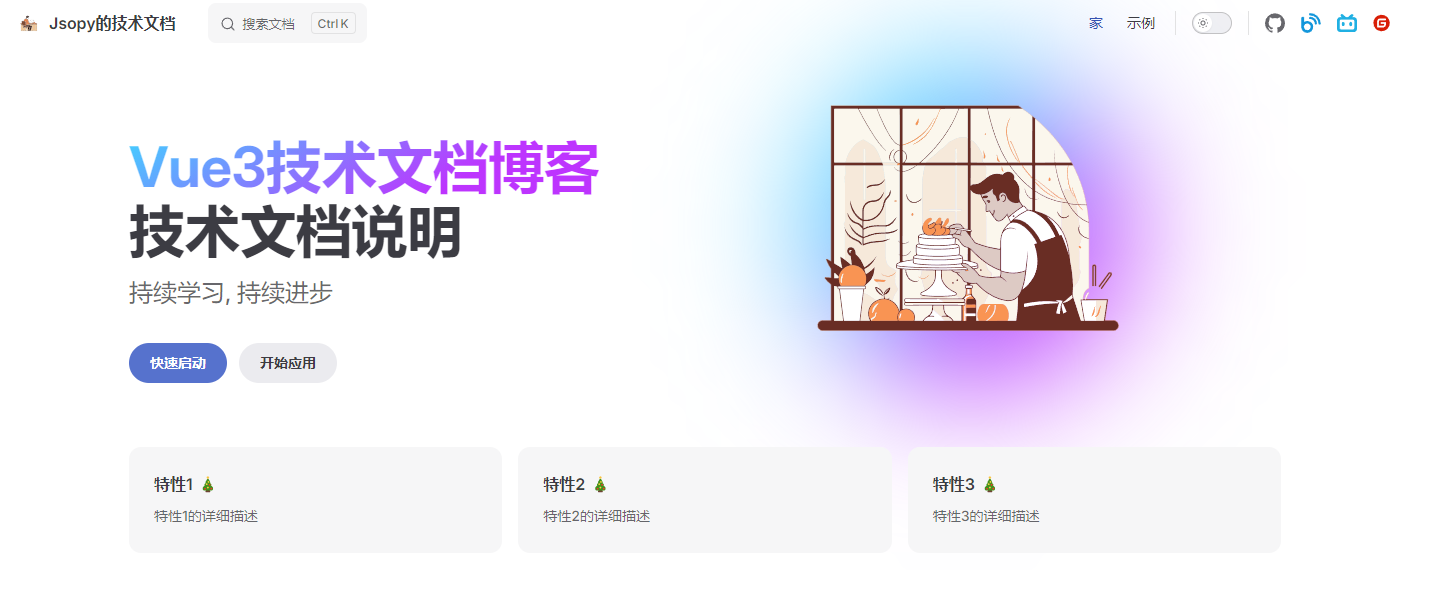

修改后的页面如下:

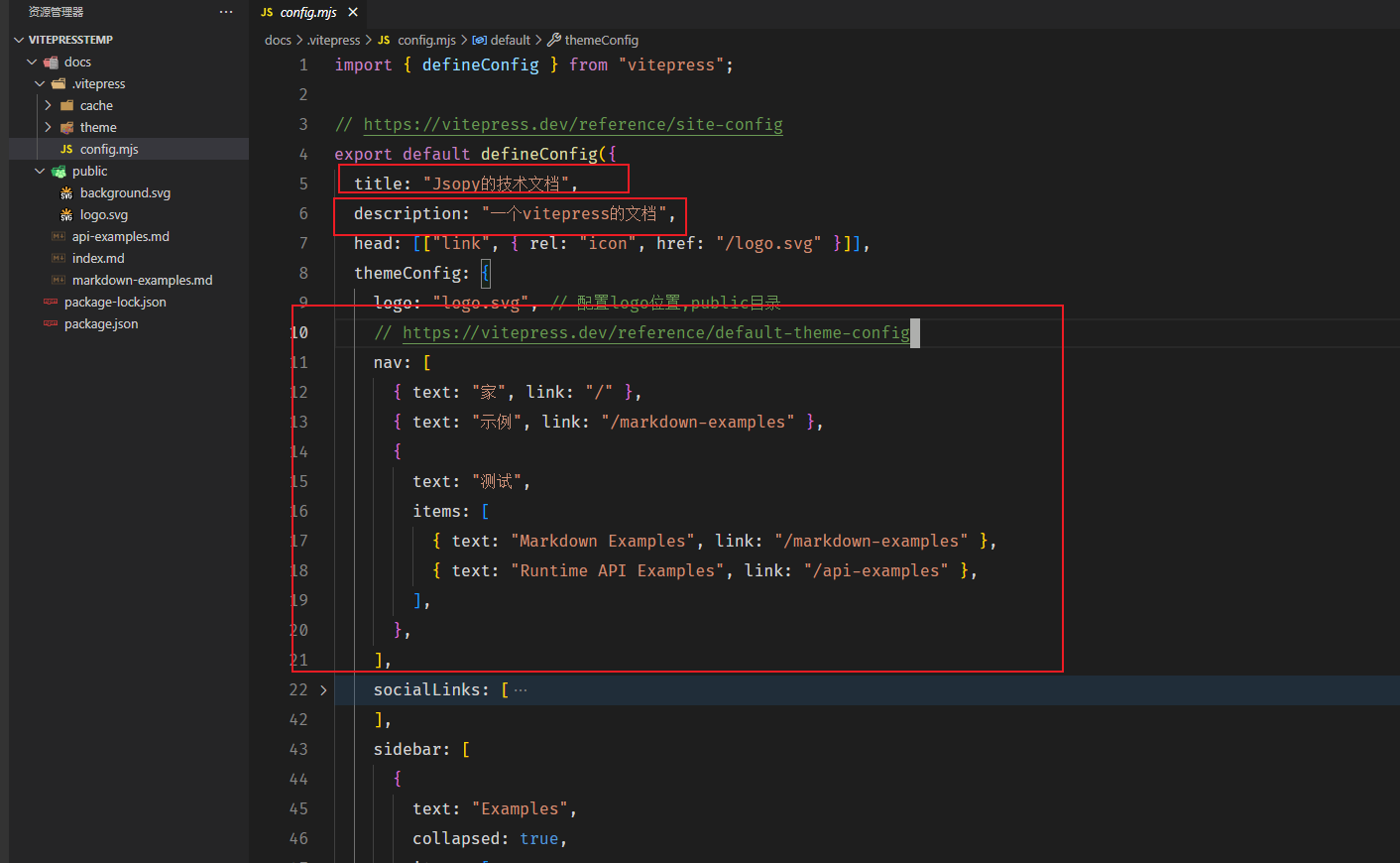

  • 1、7、8 这三个配置是在 config.mjs 中配置的
序号对应
1title
7nav
8socialLinks

description 是 SEO 要用的,我们不用关注。

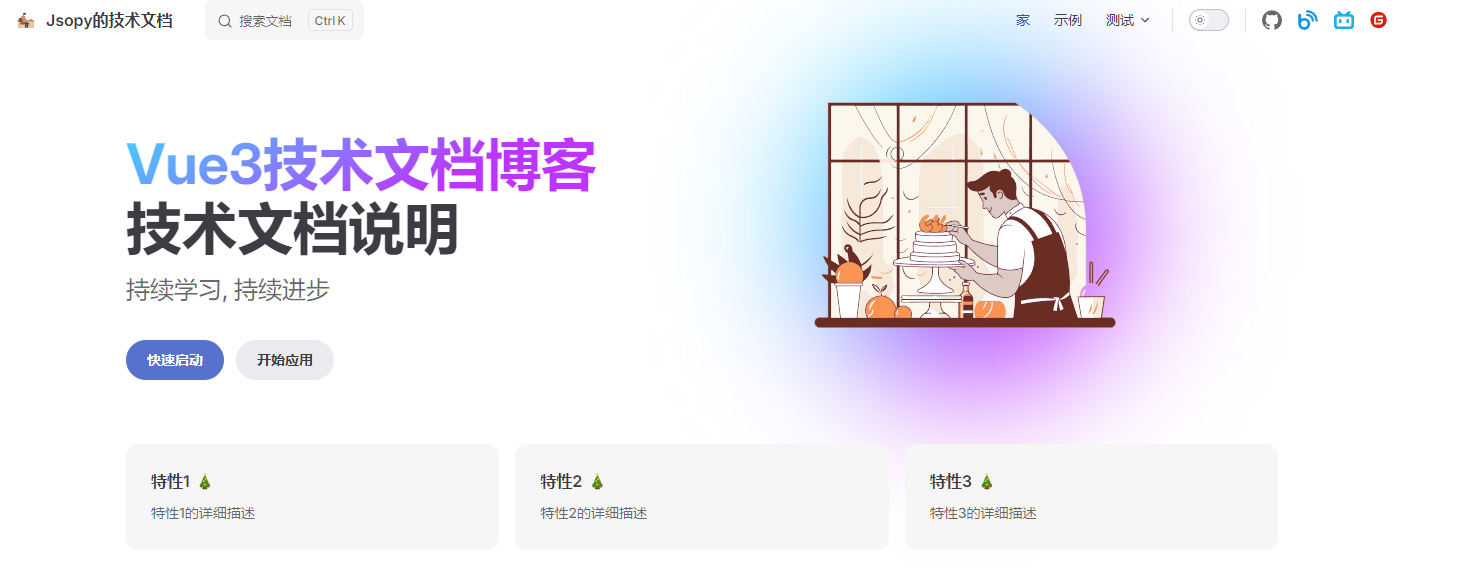

最后的结果是这样。


主题更换

找到 theme 文件夹下面的 config.mjs 文件

默认

默认就是 true,白色 能切换

bash

/**
 * 这是整个项目的配置文件
 */
import { defineConfig } from 'vitepress'

export default defineConfig({
  title: "体会head属性-网页图标修改+插入一个脚本",
  titleTemplate:false, // 禁用网页标题后缀
  description: "head 属性配置,设置网页的图标+插入一个脚本",
  appearance:true, // 默认配置,可以切换
  ... 其他的配置内容

})

没有主题切换

  • false
bash

/**
 * 这是整个项目的配置文件
 */
import { defineConfig } from 'vitepress'

export default defineConfig({
  title: "体会head属性-网页图标修改+插入一个脚本",
  titleTemplate:false, // 禁用网页标题后缀
  description: "head 属性配置,设置网页的图标+插入一个脚本",
  appearance:false,// 禁用主题设置,使用默认的配色方案
  ... 其他的配置内容

})

dark

设置为暗黑主题

bash

/**
 * 这是整个项目的配置文件
 */
import { defineConfig } from 'vitepress'

export default defineConfig({
  title: "体会head属性-网页图标修改+插入一个脚本",
  titleTemplate:false, // 禁用网页标题后缀
  description: "head 属性配置,设置网页的图标+插入一个脚本",
  appearance:'dark', // 默认主题设置为 黑色的,可以手动切换
  ... 其他的配置内容

})

force-dark

设置为暗黑主题并且不能切换

bash

/**
 * 这是整个项目的配置文件
 */
import { defineConfig } from 'vitepress'

export default defineConfig({
  title: "体会head属性-网页图标修改+插入一个脚本",
  titleTemplate:false, // 禁用网页标题后缀
  description: "head 属性配置,设置网页的图标+插入一个脚本",
  appearance:'force-dark', // 只有黑色,不可切换
  ... 其他的配置内容

})

markdown 显示行数

bash

export default defineConfig({
  title: "Jsopy的技术文档",
  description: "一个vitepress的文档",
  head: [["link", { rel: "icon", href: "/logo.svg" }]],
  markdown: {
    lineNumbers: true, // 是否显示行数,默认false
  }
  .....
})

上下翻页变成中文

找到 config.mjs

bash
export default {
  themeConfig: {
    docFooter: { prev: '上一篇', next: '下一篇' }
  }
}

最后更新时间

bash

export default {
  lastUpdated: true,
  themeConfig: {
    lastUpdatedText: "最近更新时间"
  }
}

修改侧边栏展开

bash

export default {
  themeConfig: {
     sidebar: [
      {
        text: "快速入门",
        collapsible: false, // 就是默认展开
        collapsed: true, // 显示展开的角标
        items: [
          { text: "鸿蒙简介", link: "/Basic/Info" },
          { text: "TS语法", link: "/Basic/Basic1" },
        ],
      },
      {
        text: "快速入门",
        collapsible: true, // 这个就是默认不展开
        collapsed: true,
        items: [
          { text: "鸿蒙简介", link: "/Basic/Info" },
          { text: "TS语法", link: "/Basic/Basic1" },
        ],
      },
    ],
  }
}

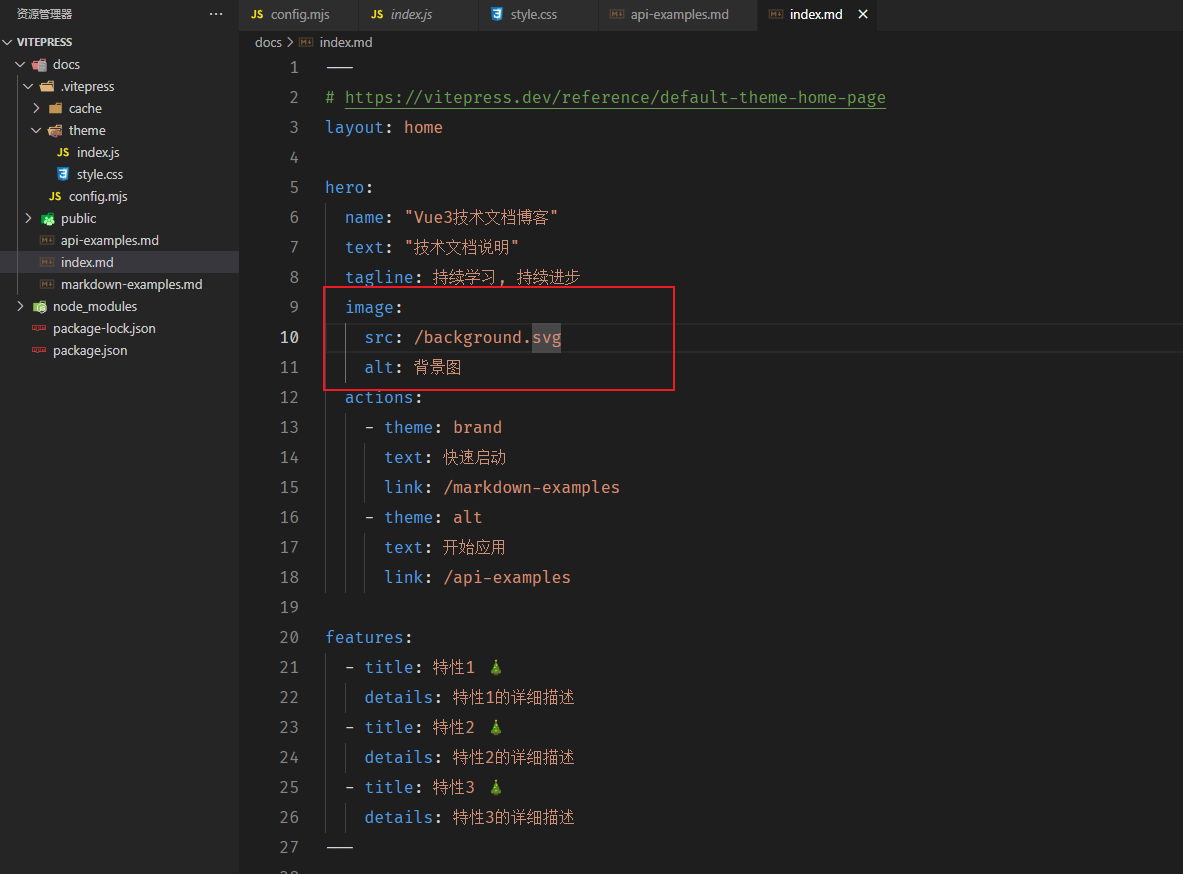

主页扩展

我们可能还想要对页面进行进一步美化,添加一些图标。可以去这个网站找图片https://www.iconfont.cn/

将找到的图片放在根目录下的 public 目录下。

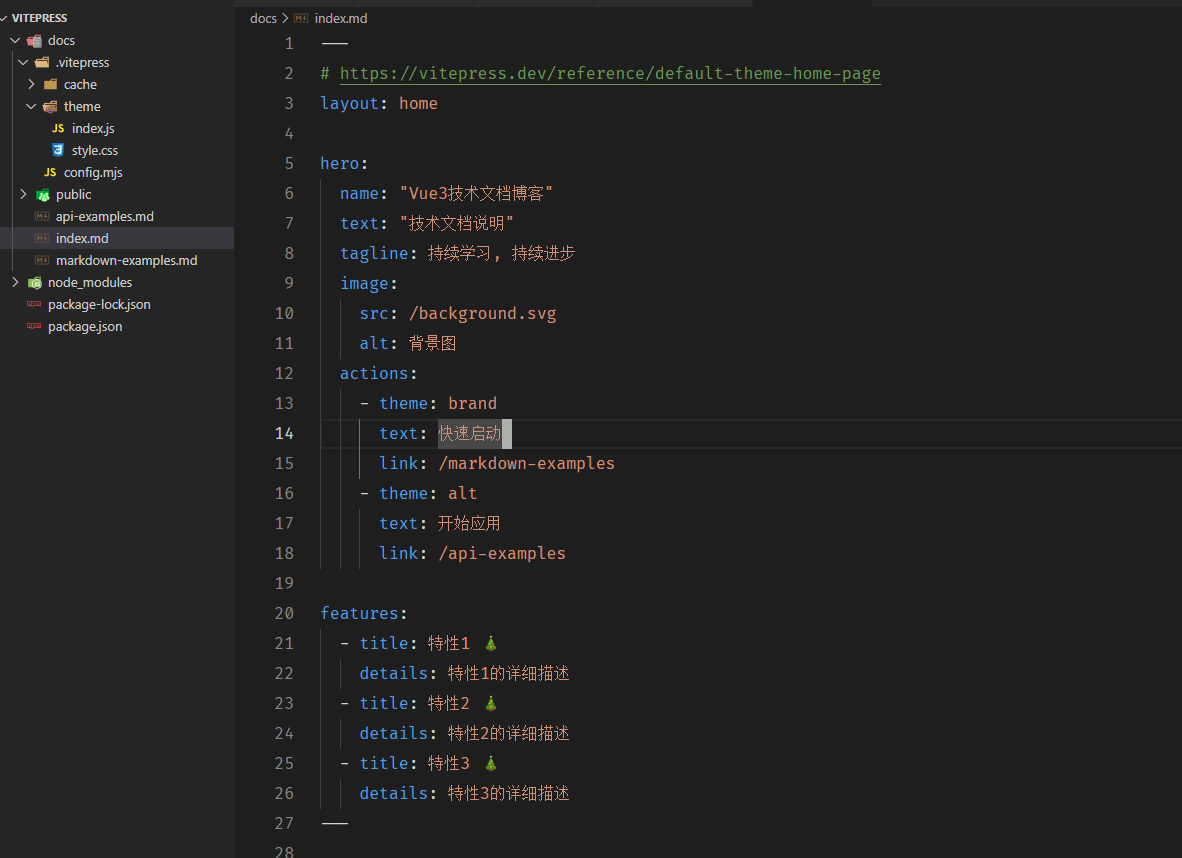

找到index.md


最后美化的效果如图:

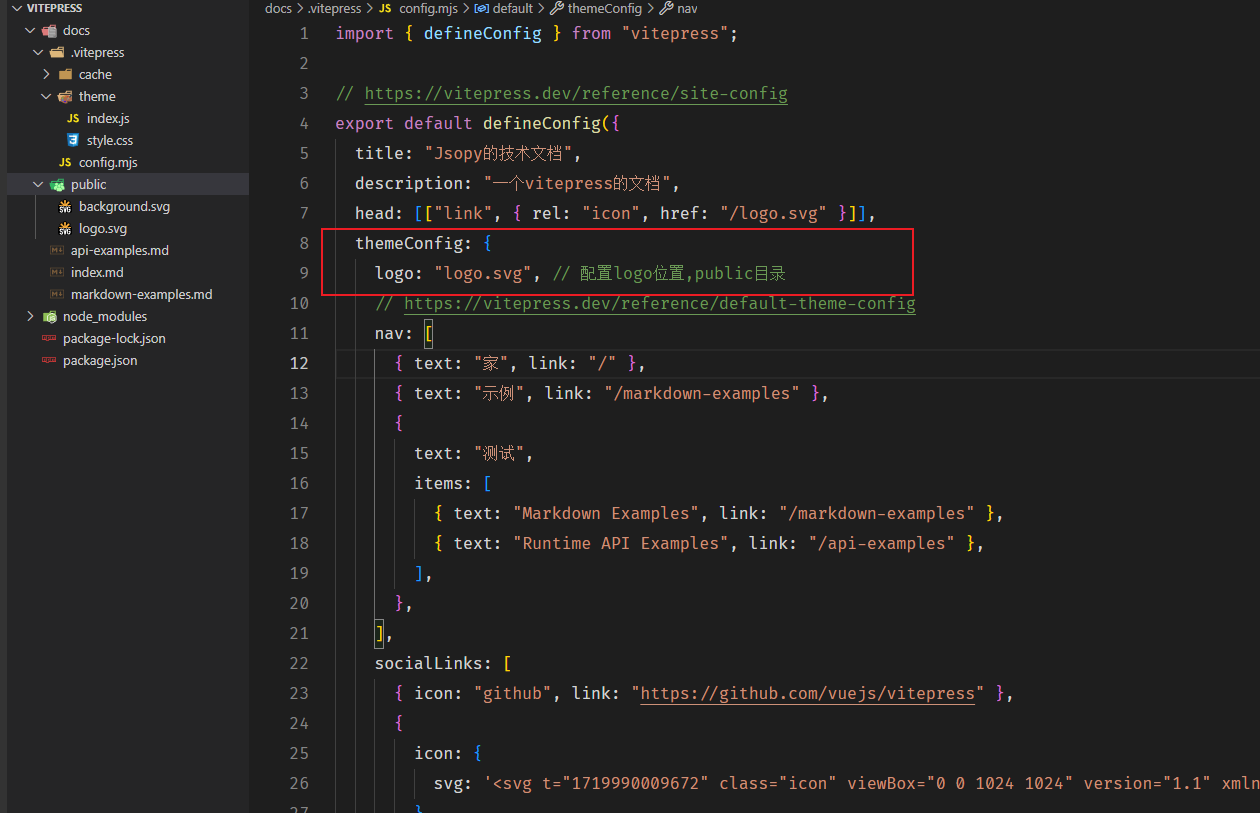

logo 的配置

是在 config.mjs 添加。(注意是 themeConfig 不是 config)


bash

logo: "logo.svg", // 配置logo位置,public目录

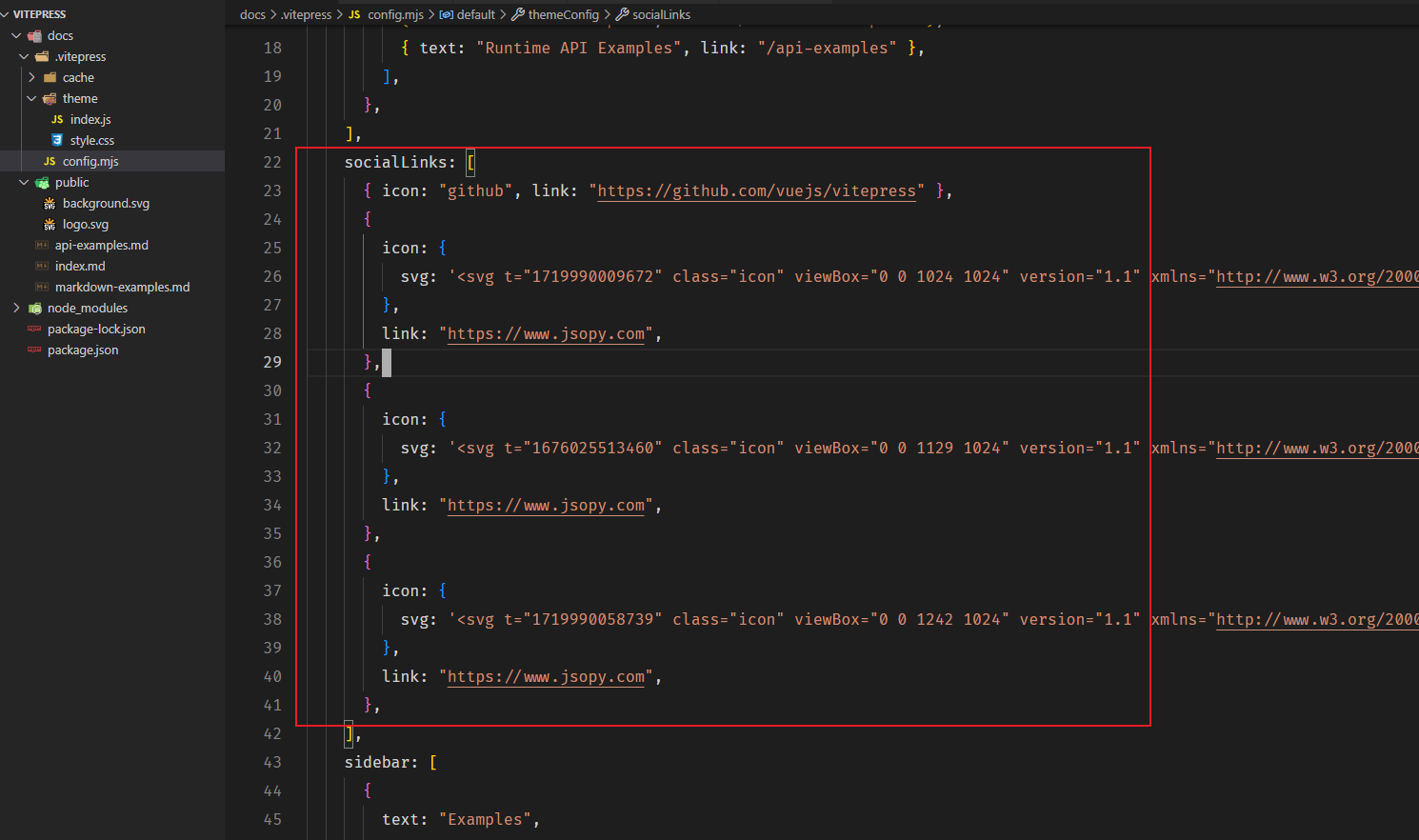

vitepress 原生支持国外的 sociallink,如果是国内需要自行复制 svg 代码。如图:

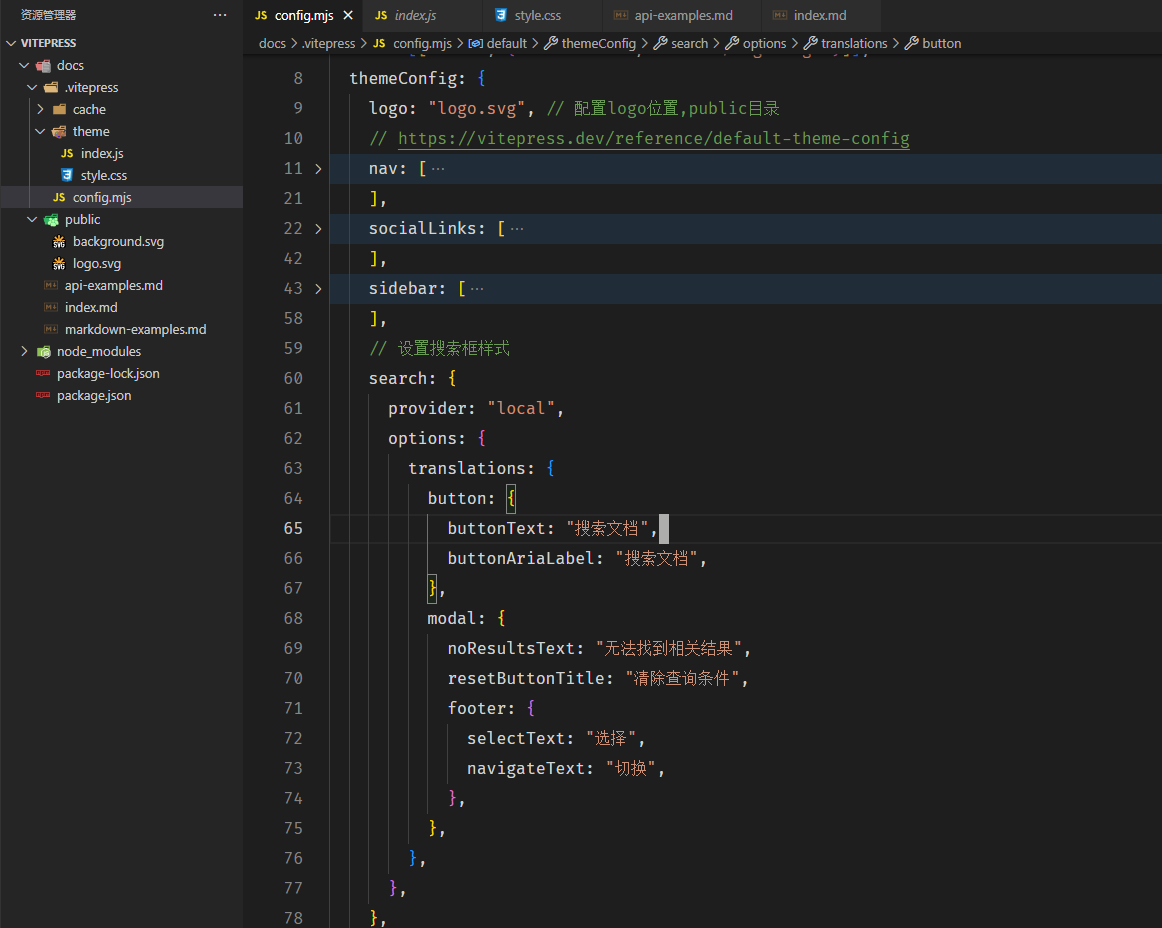

添加搜索栏

config.mjs 中的 themeConfig(支持国际化需要进一步配置 )


美化文章页

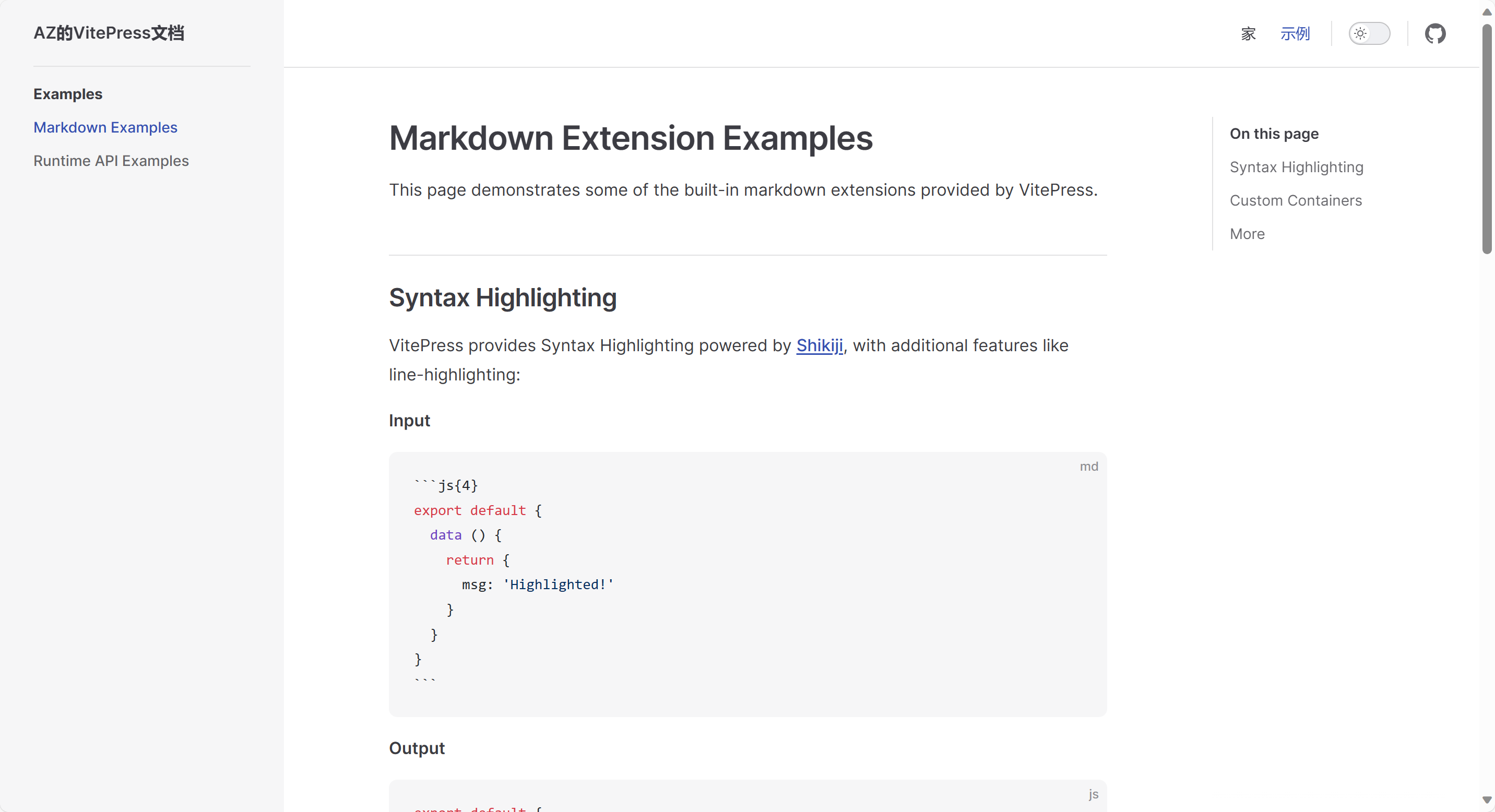

默认进来官方给的示例是三边栏的

左边导航

左边是 sidebar 的配置,右边是显示的文章目录(默认显示一二级)。

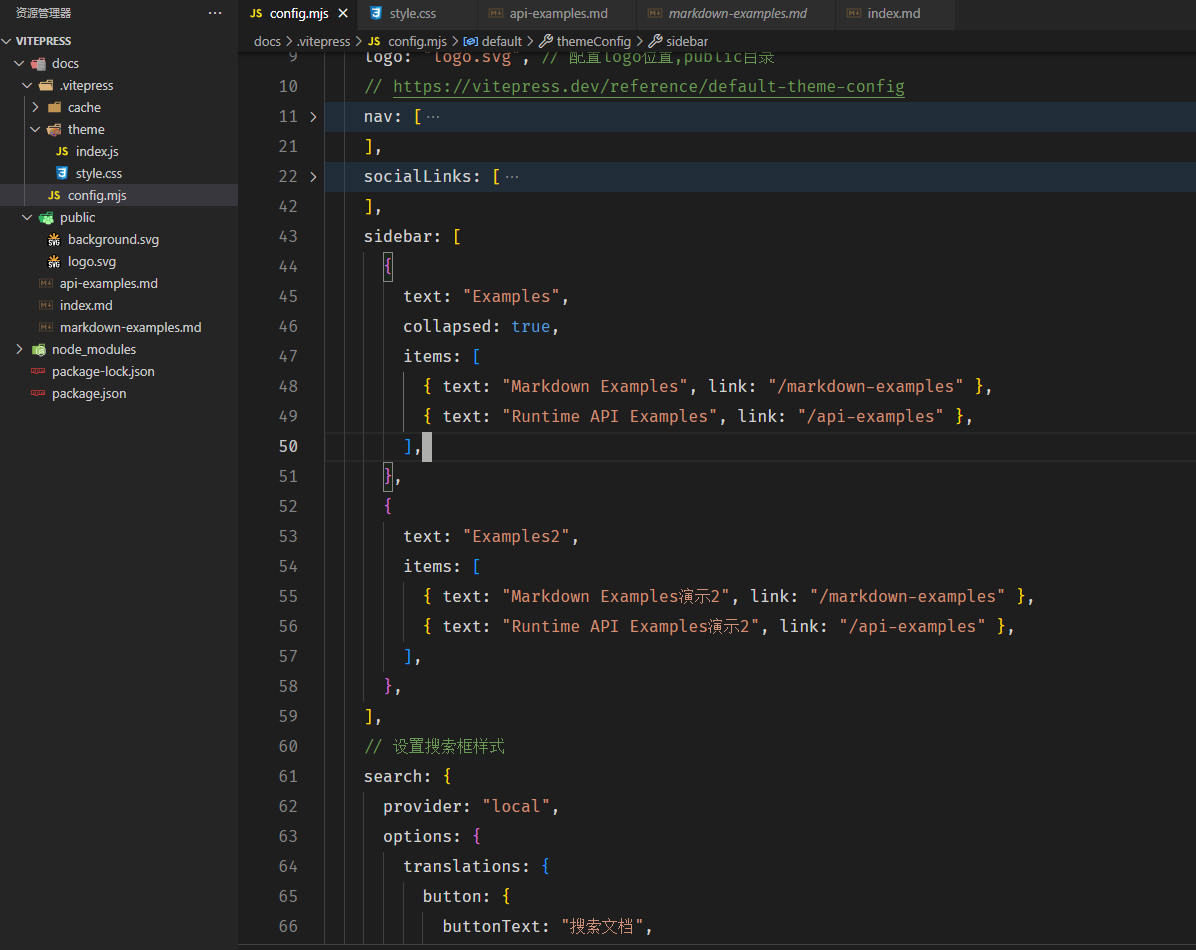

下面叙述这个是怎么配置的。sidebar 可以是数组,也可以是对象。还是修改 config.mjs


结果如下:


右边默认索引

右侧导航栏默认索引的是 md 文件的一二级标题,可能需要定义索引的标题级别和 On this page 这个说明。

这个时候需要在 config.mjs 中下面的 themeConfig 配置下面这两个选项,

outlineTitle 用于替代 On this page。

outline 定义展示的标题级别,这里定义 2-6 级


最后美化后的文章目录是这样


文章页扩展(可选)

当然,这样对一些项目的文档是非常合适的。但是如果我们需要记笔记的话有些繁琐,并且三边栏总感觉可以查阅的东西变少了。

因此可以使用刚才说的自定义样式。将三边栏改成两边栏

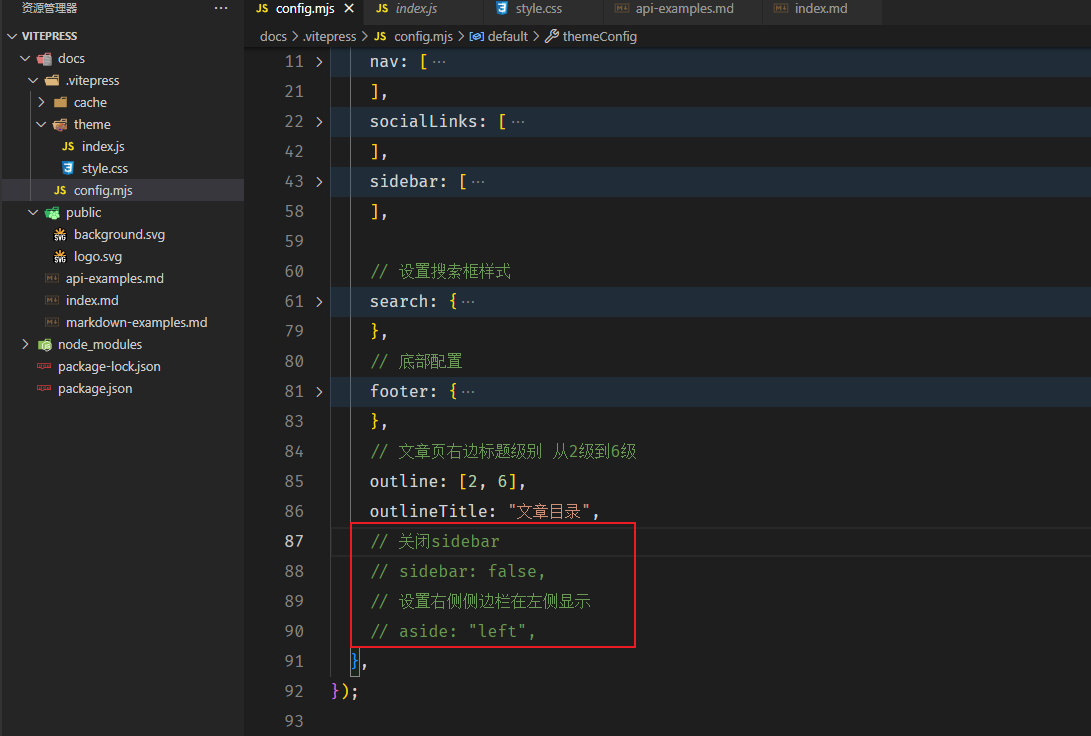

在 config.mjs 中的 themeConfig 配置对象中配置


在.vitepress theme style.css 中配置下面的 css

css
/* 自定义侧边栏在最左边,右边撑满宽度 */
.VPDoc .container {
  margin: 0 !important;
}
@media (min-width: 960px) {
  .VPDoc:not(.has-sidebar) .content {
    max-width: 1552px !important;
  }
}
.VPDoc.has-aside .content-container {
  max-width: 1488px !important;
}
@media (min-width: 960px) {
  .VPDoc:not(.has-sidebar) .container {
    display: flex;
    justify-content: center;
    max-width: 1562px !important;
  }
}
.aside-container {
  position: fixed;
  top: 0;
  padding-top: calc(
    var(--vp-nav-height) + var(--vp-layout-top-height, 0px) + var(
        --vp-doc-top-height,
        0px
      ) + 10px
  ) !important;
  width: 224px;
  height: 100vh;
  overflow-x: hidden;
  overflow-y: auto;
  scrollbar-width: none;
}

/* 自定义h2的间距 */
.vp-doc h2 {
  margin: 0px 0 16px;
  padding-top: 24px;
  border: none;
}

就可以将三栏样式改成双栏了(当然,上面的自定义 css 是我的偏好,根据实际情况可以修改)

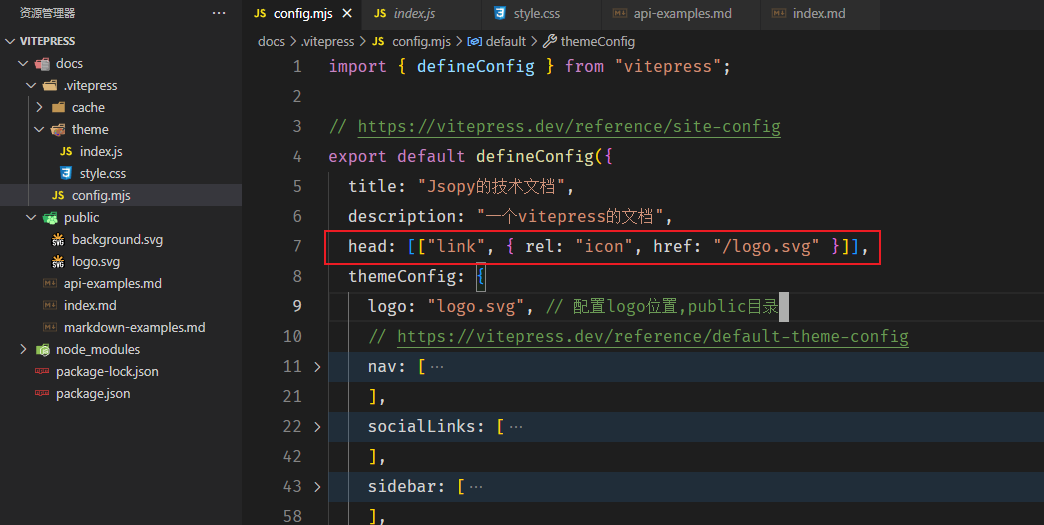

美化地址栏 icon

我们可能还需要修改浏览器地址栏的左边图标


配置

在 config.mjs 下面可以直接配置 defineConfig


如果需要配置路径base,这个href也需要添加base路径作为前缀

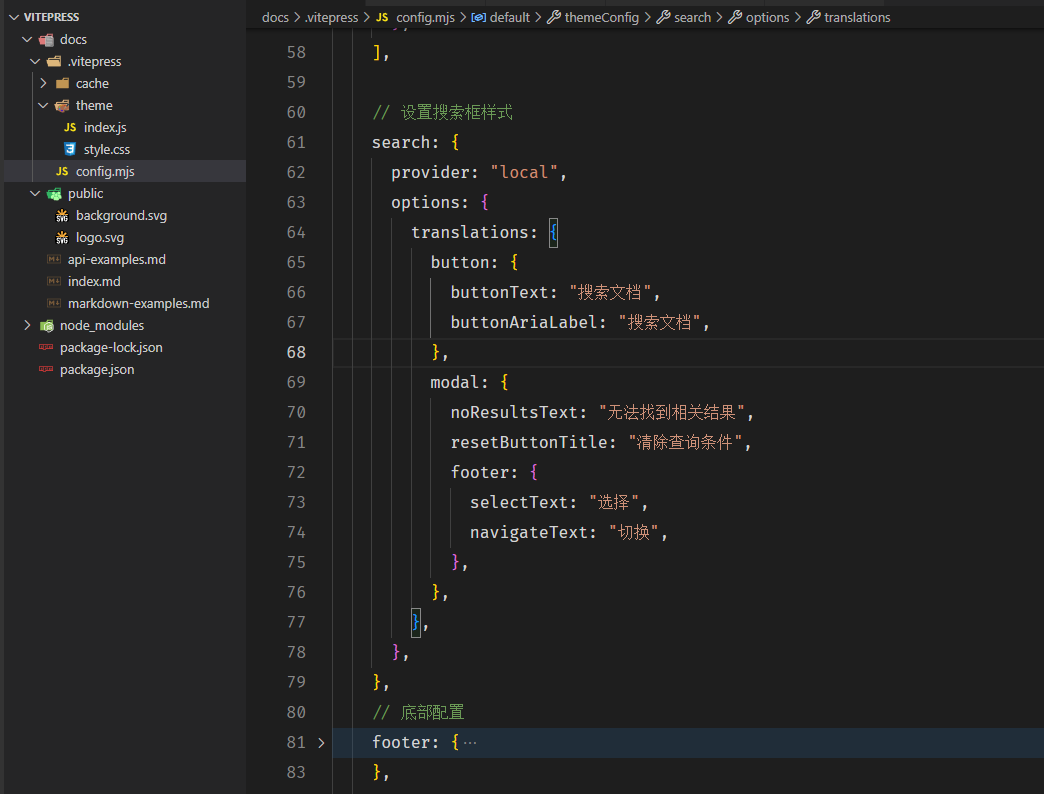

搜索框

配置

在 config.mjs defineConfig themeConfig 下面直接配置即可


代码组

可以像这样对多个代码块进行分组:

输入

md
::: code-group

```js [config.js]
/**
 * @type {import('vitepress').UserConfig}
 */
const config = {
  // ...
};

export default config;
```
ts
import type { UserConfig } from "vitepress";

const config: UserConfig = {
  // ...
};

export default config;

:::

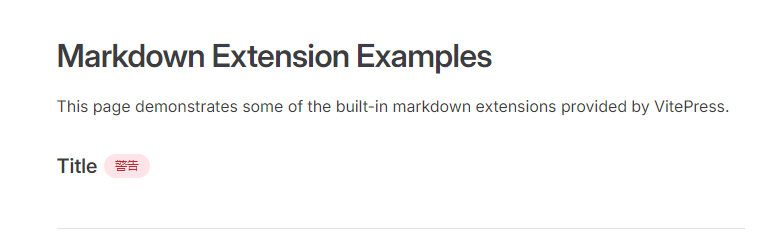

徽章

文章页

标题直接跟徽章

md
### Title <Badge type="info" text="default" />

### Title <Badge type="tip" text="^1.9.0" />

### Title <Badge type="warning" text="beta" />

### Title <Badge type="danger" text="警告" />


自定义徽章颜色

在 theme 下面的 style.css 里面

css
:root {
  --vp-badge-info-border: transparent;
  --vp-badge-info-text: var(--vp-c-text-2);
  --vp-badge-info-bg: var(--vp-c-default-soft);

  --vp-badge-tip-border: transparent;
  --vp-badge-tip-text: var(--vp-c-brand-1);
  --vp-badge-tip-bg: var(--vp-c-brand-soft);

  --vp-badge-warning-border: transparent;
  --vp-badge-warning-text: var(--vp-c-warning-1);
  --vp-badge-warning-bg: var(--vp-c-warning-soft);

  --vp-badge-danger-border: transparent;
  --vp-badge-danger-text: var(--vp-c-danger-1);
  --vp-badge-danger-bg: var(--vp-c-danger-soft);
}

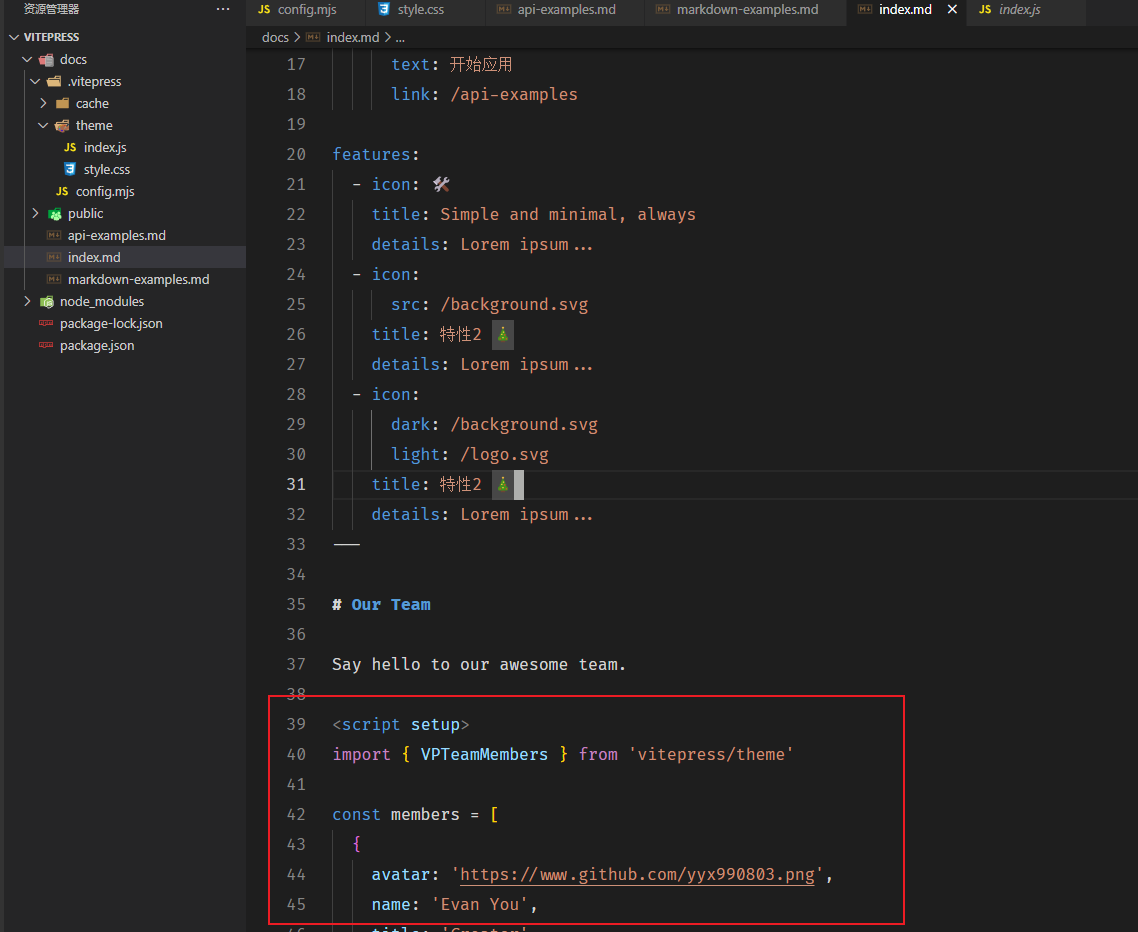

增加团队卡片

  • 在任何页面 包括 index.md 里面的任意位置写入代码
md
<script setup>
import { VPTeamMembers } from 'vitepress/theme'

const members = [
  {
    avatar: 'https://www.github.com/yyx990803.png',
    name: 'Evan You',
    title: 'Creator',
    links: [
      { icon: 'github', link: 'https://github.com/yyx990803' },
      { icon: 'twitter', link: 'https://twitter.com/youyuxi' }
    ]
  },
   {
    avatar: 'https://www.github.com/yyx990803.png',
    name: 'Tools',
    title: 'Creator222',
    links: [
      { icon: 'github', link: 'https://github.com/yyx990803' },
      { icon: 'twitter', link: 'https://twitter.com/youyuxi' }
    ]
  },
]
</script>
<VPTeamMembers size="small" :members="members" />

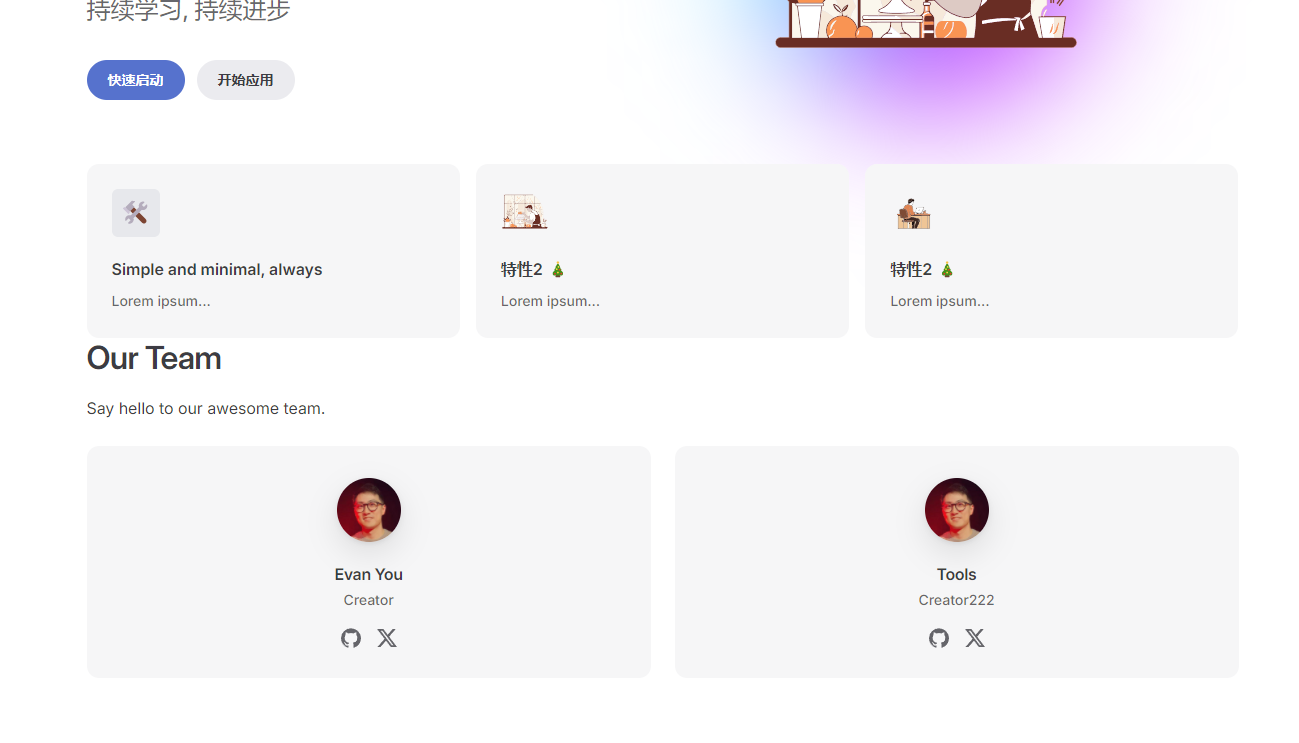

  • 显示效果如下:


VitePress 中使用第三方插件

(1)安装

bash

npm install element-plus @element-plus/icons-vue -S

(2)引用

  • 找到.vitepress下面的theme下面的index.js文件
js
// https://vitepress.dev/guide/custom-theme
import { h } from "vue";
import DefaultTheme from "vitepress/theme";
import "./style.css";
import ElementPlus from "element-plus";
import "element-plus/dist/index.css";
/** @type {import('vitepress').Theme} */
export default {
  extends: DefaultTheme,
  Layout: () => {
    return h(DefaultTheme.Layout, null, {
      // https://vitepress.dev/guide/extending-default-theme#layout-slots
    });
  },
  enhanceApp({ app, router, siteData }) {
    app.use(ElementPlus);
  },
};

(3) 组件调用

  • 在任何页面 可以随意写组件代码

  • 并且使用 script 里面的 setup 可以随意更改状态

  • 我拿首页举例子

md
---
# https://vitepress.dev/reference/default-theme-home-page
layout: home

hero:
  name: "测试组件文档99999"
  text: "测试组件文档描述"
  tagline: My great project tagline
  actions:
    - theme: brand
      text: Markdown Examples
      link: /markdown-examples
    - theme: alt
      text: API Examples
      link: /api-examples

features:
  - title: Feature A
    details: Lorem ipsum dolor sit amet, consectetur adipiscing elit
  - title: Feature B
    details: Lorem ipsum dolor sit amet, consectetur adipiscing elit
  - title: Feature C
    details: Lorem ipsum dolor sit amet, consectetur adipiscing elit
---

## 地址选择器

</br>

<div style="padding:1em;margin:1em;border:1px solid #ccc;" v-if="visible">

<el-button type="primary">点击</el-button>

</div>

### 代码实例

<script lang="ts" setup>
import {ref} from "vue"
let visible = ref<boolean>(true)
</script>

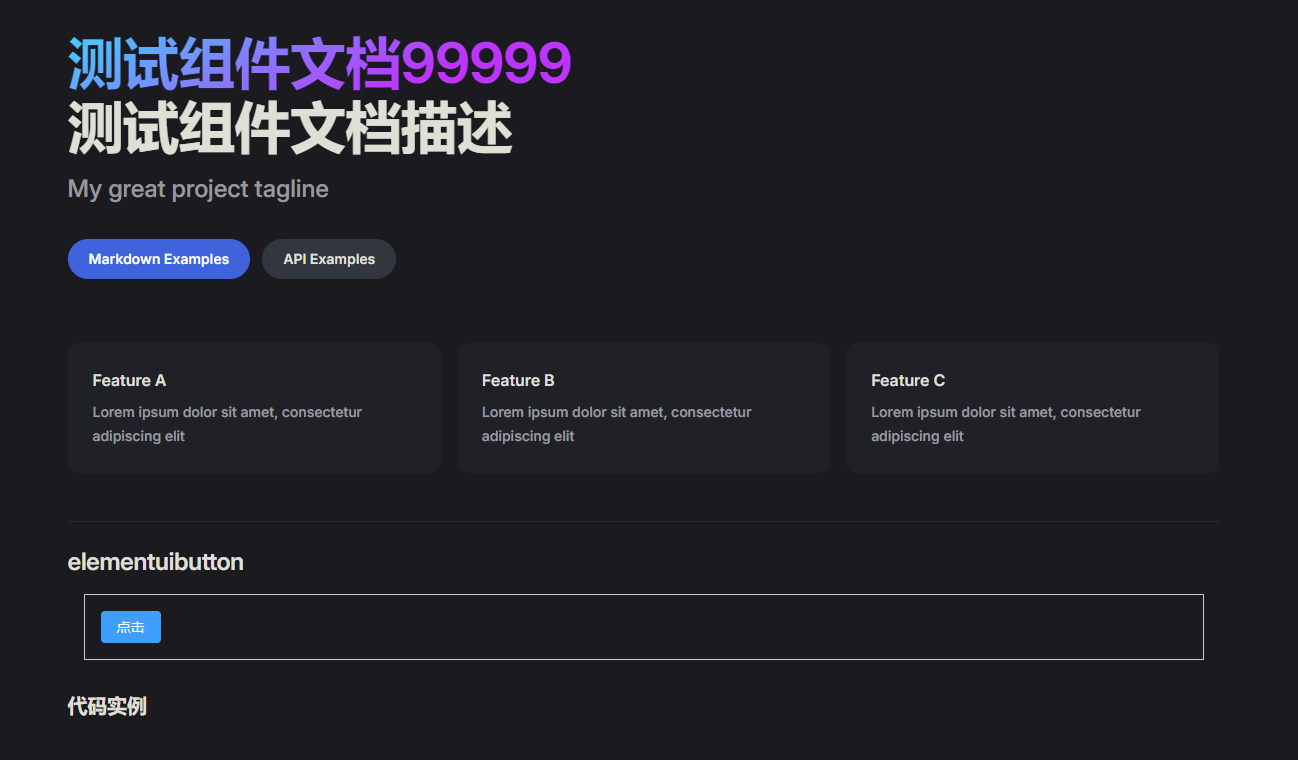

结果如下


总结

index.md

md
---
# https://vitepress.dev/reference/default-theme-home-page
layout: home

hero:
  name: "Vue3技术文档博客"
  text: "技术文档说明"
  tagline: 持续学习, 持续进步
  image:
    src: /background.svg
    alt: 背景图
  actions:
    - theme: brand
      text: 快速启动
      link: /markdown-examples
    - theme: alt
      text: 开始应用
      link: /api-examples
    - theme: alt
      text: 开始应用
      link: /api-examples
    - theme: alt
      text: 开始应用
      link: /api-examples
features:
  - icon: 🛠️
    title: Simple and minimal, always
    details: Lorem ipsum...
    link: https://xxxxx/
    linkText: 了解更多
  - icon:
      src: /background.svg
    title: 特性2 🎄
    details: Lorem ipsum...
    link: https://xxxxx/
    linkText: 了解更多
  - icon:
      dark: /background.svg
      light: /logo.svg
    title: 特性2 🎄
    details: Lorem ipsum...
    link: https://xxxxx/
    linkText: 了解更多
  - icon: 🛠️
    title: Simple and minimal, always
    details: Lorem ipsum...
    link: https://xxxxx/
    linkText: 了解更多
  - icon:
      src: /background.svg
    title: 特性2 🎄
    details: Lorem ipsum...
    link: https://xxxxx/
    linkText: 了解更多
  - icon:
      dark: /background.svg
      light: /logo.svg
    title: 特性2 🎄
    details: Lorem ipsumLorem
    link: https://xxxxx/
    linkText: 了解更多
---

## Our Team

Say hello to our awesome team.

<script setup>
import { VPTeamMembers } from 'vitepress/theme'

const members = [
  {
    avatar: 'https://www.github.com/yyx990803.png',
    name: 'Evan You',
    title: 'Creator',
    links: [
      { icon: 'github', link: 'https://github.com/yyx990803' },
      { icon: 'twitter', link: 'https://twitter.com/youyuxi' }
    ]
  },
   {
    avatar: 'https://www.github.com/yyx990803.png',
    name: 'Tools',
    title: 'Creator222',
    links: [
      { icon: 'github', link: 'https://github.com/yyx990803' },
      { icon: 'twitter', link: 'https://twitter.com/youyuxi' }
    ]
  },
   {
    avatar: 'https://www.github.com/yyx990803.png',
    name: 'Tools',
    title: 'Creator222',
    links: [
      { icon: 'github', link: 'https://github.com/yyx990803' },
      { icon: 'twitter', link: 'https://twitter.com/youyuxi' }
    ]
  },
   {
    avatar: 'https://www.github.com/yyx990803.png',
    name: 'Tools',
    title: 'Creator222',
    links: [
      { icon: 'github', link: 'https://github.com/yyx990803' },
      { icon: 'twitter', link: 'https://twitter.com/youyuxi' }
    ]
  },
   {
    avatar: 'https://www.github.com/yyx990803.png',
    name: 'Tools',
    title: 'Creator222',
    links: [
      { icon: 'github', link: 'https://github.com/yyx990803' },
      { icon: 'twitter', link: 'https://twitter.com/youyuxi' }
    ]
  },
   {
    avatar: 'https://www.github.com/yyx990803.png',
    name: 'Tools',
    title: 'Creator222',
    links: [
      { icon: 'github', link: 'https://github.com/yyx990803' },
      { icon: 'twitter', link: 'https://twitter.com/youyuxi' }
    ]
  },
   {
    avatar: 'https://www.github.com/yyx990803.png',
    name: 'Tools',
    title: 'Creator222',
    links: [
      { icon: 'github', link: 'https://github.com/yyx990803' },
      { icon: 'twitter', link: 'https://twitter.com/youyuxi' }
    ]
  },
]
</script>
<VPTeamMembers size="small" :members="members" />

config.mjs

bash

import { defineConfig } from "vitepress";

// https://vitepress.dev/reference/site-config
export default defineConfig({
  title: "Jsopy的技术文档",
  description: "一个vitepress的文档",
  head: [["link", { rel: "icon", href: "/logo.svg" }]],
  markdown: {
    lineNumbers: true, // 是否显示行数,默认false
  },
  themeConfig: {
    docFooter: { prev: "上一篇", next: "下一篇" },
    logo: "logo.svg", // 配置logo位置,public目录
    // https://vitepress.dev/reference/default-theme-config
    nav: [
      { text: "家", link: "/" },
      { text: "示例", link: "/markdown-examples" },
      {
        text: "测试",
        items: [
          { text: "Markdown Examples", link: "/markdown-examples" },
          { text: "Runtime API Examples", link: "/api-examples" },
        ],
      },
    ],
    socialLinks: [
      { icon: "github", link: "https://github.com/vuejs/vitepress" },
      {
        icon: {
          svg: '<svg t="1719990009672" class="icon" viewBox="0 0 1024 1024" version="1.1" xmlns="http://www.w3.org/2000/svg" p-id="7608" width="48" height="48"><path d="M320 409.6c-57.6 0-108.8 12.8-160 38.4V256c0-38.4-32-64-76.8-64S12.8 217.6 12.8 256v480C25.6 896 160 1017.6 320 1017.6c166.4 0 307.2-134.4 307.2-307.2S486.4 409.6 320 409.6z m0 473.6c-83.2 0-153.6-57.6-166.4-134.4 0-12.8-6.4-25.6-6.4-38.4 0-25.6 6.4-51.2 12.8-70.4C192 576 249.6 537.6 320 537.6c96 0 172.8 76.8 172.8 172.8S416 883.2 320 883.2zM761.6 595.2c-32 0-57.6-25.6-57.6-57.6 0-128-108.8-230.4-236.8-230.4-32 6.4-57.6-19.2-57.6-51.2s25.6-57.6 57.6-57.6c185.6-6.4 352 147.2 352 339.2 0 32-25.6 57.6-57.6 57.6z" fill="#1296db" p-id="7609"></path><path d="M953.6 595.2c-32 0-57.6-25.6-57.6-57.6 0-115.2-44.8-217.6-128-300.8-83.2-76.8-192-115.2-307.2-115.2-32 0-57.6-25.6-57.6-57.6s25.6-57.6 57.6-57.6c147.2 0 281.6 51.2 384 153.6 102.4 102.4 160 236.8 166.4 377.6 0 32-25.6 57.6-57.6 57.6z" fill="#1296db" p-id="7610"></path></svg>',
        },
        link: "https://www.jsopy.com",
      },
      {
        icon: {
          svg: '<svg t="1676025513460" class="icon" viewBox="0 0 1129 1024" version="1.1" xmlns="http://www.w3.org/2000/svg" p-id="2745" width="200" height="200"><path d="M234.909 9.656a80.468 80.468 0 0 1 68.398 0 167.374 167.374 0 0 1 41.843 30.578l160.937 140.82h115.07l160.936-140.82a168.983 168.983 0 0 1 41.843-30.578A80.468 80.468 0 0 1 930.96 76.445a80.468 80.468 0 0 1-17.703 53.914 449.818 449.818 0 0 1-35.406 32.187 232.553 232.553 0 0 1-22.531 18.508h100.585a170.593 170.593 0 0 1 118.289 53.109 171.397 171.397 0 0 1 53.914 118.288v462.693a325.897 325.897 0 0 1-4.024 70.007 178.64 178.64 0 0 1-80.468 112.656 173.007 173.007 0 0 1-92.539 25.75h-738.7a341.186 341.186 0 0 1-72.421-4.024A177.835 177.835 0 0 1 28.91 939.065a172.202 172.202 0 0 1-27.36-92.539V388.662a360.498 360.498 0 0 1 0-66.789A177.03 177.03 0 0 1 162.487 178.64h105.414c-16.899-12.07-31.383-26.555-46.672-39.43a80.468 80.468 0 0 1-25.75-65.984 80.468 80.468 0 0 1 39.43-63.57M216.4 321.873a80.468 80.468 0 0 0-63.57 57.937 108.632 108.632 0 0 0 0 30.578v380.615a80.468 80.468 0 0 0 55.523 80.469 106.218 106.218 0 0 0 34.601 5.632h654.208a80.468 80.468 0 0 0 76.444-47.476 112.656 112.656 0 0 0 8.047-53.109v-354.06a135.187 135.187 0 0 0 0-38.625 80.468 80.468 0 0 0-52.304-54.719 129.554 129.554 0 0 0-49.89-7.242H254.22a268.764 268.764 0 0 0-37.82 0z m0 0" fill="#20B0E3" p-id="2746"></path><path d="M348.369 447.404a80.468 80.468 0 0 1 55.523 18.507 80.468 80.468 0 0 1 28.164 59.547v80.468a80.468 80.468 0 0 1-16.094 51.5 80.468 80.468 0 0 1-131.968-9.656 104.609 104.609 0 0 1-10.46-54.719v-80.468a80.468 80.468 0 0 1 70.007-67.593z m416.02 0a80.468 80.468 0 0 1 86.102 75.64v80.468a94.148 94.148 0 0 1-12.07 53.11 80.468 80.468 0 0 1-132.773 0 95.757 95.757 0 0 1-12.875-57.133V519.02a80.468 80.468 0 0 1 70.007-70.812z m0 0" fill="#20B0E3" p-id="2747"></path></svg>',
        },
        link: "https://www.jsopy.com",
      },
      {
        icon: {
          svg: '<svg t="1719990058739" class="icon" viewBox="0 0 1242 1024" version="1.1" xmlns="http://www.w3.org/2000/svg" p-id="8729" width="48" height="48"><path d="M531.252288 0C248.42147 0 19.252288 229.169181 19.252288 512S248.42147 1024 531.252288 1024s512-229.169181 512-512S814.083107 0 531.252288 0zM389.527887 678.340777h234.31905c40.786964 0 73.952122-33.062161 73.952123-73.952123v-12.256689c0-13.595655-11.02072-24.719372-24.719373-24.719372H500.45607c-13.698652 0-24.719372-11.02072-24.719372-24.719372v-61.592436c0-13.698652 11.02072-24.719372 24.719372-24.719373H784.007871c13.595655 0 24.719372 11.02072 24.719372 24.719373v141.724401c0 91.976665-74.570107 166.443774-166.443774 166.443774H278.496706c-13.595655 0-24.719372-11.02072-24.719372-24.719372v-345.04124c0-102.070408 82.809897-184.880306 184.880305-184.880305H784.007871c13.698652 0 24.719372 11.02072 24.719372 24.719372l-0.102997 61.592436c0 13.698652-11.02072 24.719372-24.719373 24.719372H438.760637c-40.786964 0-73.952122 33.062161-73.952123 73.952123v234.216053c0 13.492657 11.02072 24.513378 24.719373 24.513378z" fill="#d81e06" p-id="8730"></path></svg>',
        },
        link: "https://www.jsopy.com",
      },
    ],
    sidebar: [
      {
        text: "Examples",
        collapsible: true, // 如果是false 就默认不展开
        collapsed: true, // 是否显示展开角标
        items: [
          { text: "Markdown Examples", link: "/markdown-examples" },
          { text: "Runtime API Examples", link: "/api-examples" },
        ],
      },
      {
        text: "Examples2",
        items: [
          { text: "Markdown Examples演示2", link: "/markdown-examples" },
          { text: "Runtime API Examples演示2", link: "/api-examples" },
        ],
      },
    ],
    // 设置搜索框样式
    search: {
      provider: "local",
      options: {
        translations: {
          button: {
            buttonText: "搜索文档",
            buttonAriaLabel: "搜索文档",
          },
          modal: {
            noResultsText: "无法找到相关结果",
            resetButtonTitle: "清除查询条件",
            footer: {
              selectText: "选择",
              navigateText: "切换",
            },
          },
        },
      },
    },
    // 底部配置
    footer: {
      copyright: "网站备案号:津ICP备15001525号-2",
    },
    // 文章页右边标题级别 从2级到6级
    outline: [2, 6],
    outlineTitle: "文章目录",
    // 关闭sidebar
    // sidebar: false,
    // 设置右侧侧边栏在左侧显示
    // aside: "left",
  },
});
